LASER CUTTING

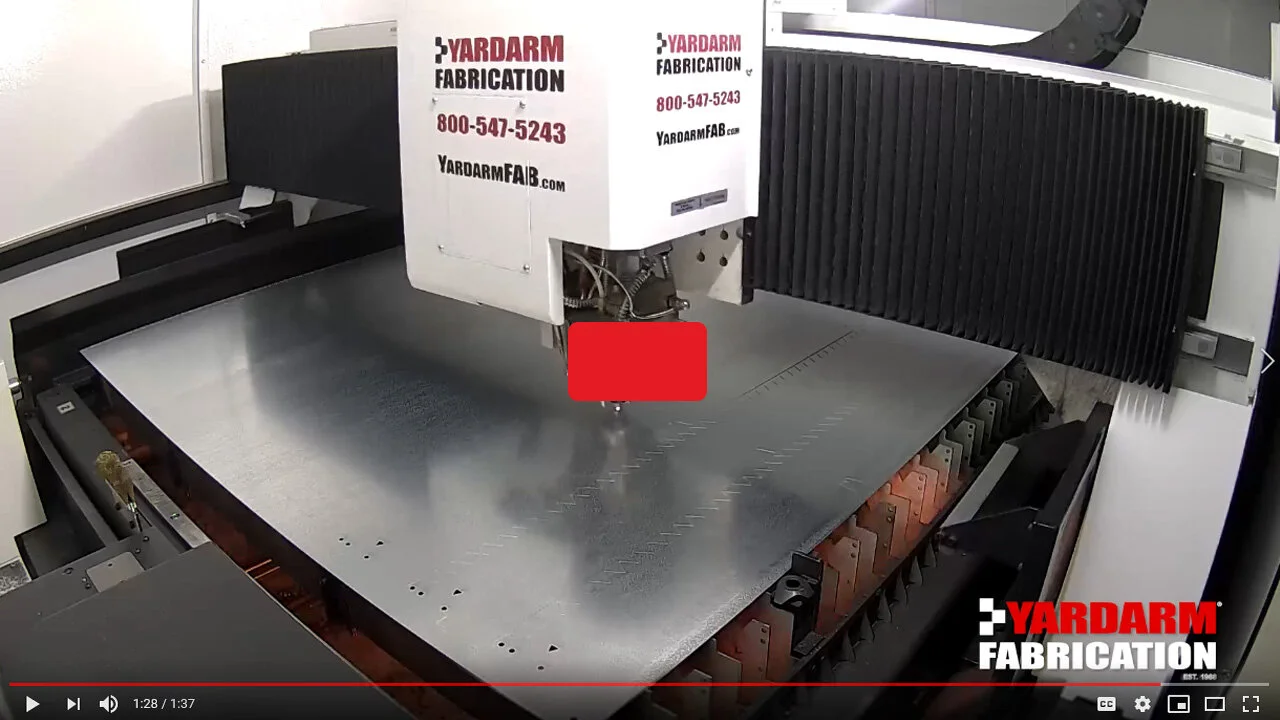

Watch our video of laser cutting with the Mazak Optiplex Nexus Fiber Laser.
We can achieve high quality cuts on almost any metal, manually or with our precision fiber laser.
MATERIAL THICKNESS MAX:
Mild Steel: 1”
Stainless Steel: 0.625”
Galvanized Steel: 0.164”
Aluminium: 0.625”
Copper: 0.375”
Brass: 0.375”
MAX SIZE: 60” x 120”
MACHINES
| MAZAK OPTIPLEX NEXUS 3015 FIBER LASER | |
|---|---|
| Max Workpiece Dimensions: 60” x 120” | |
| Max Workpiece Weight: 2,050 lbs | |
| Max Material Thickness and Assist Gases: Mild Steel-Nitrogen Max 0.313” Oxygen Max 1”; Stainless Steel-Nitrogen Only Max 0.625"; Aluminum-Nitrogen Only 0.625"; Brass-Nitrogen Only Max 0.375”; Copper-Oxygen Only Max 0.375”; Galvanized-Nitrogen Only Max 0.164" | |
| Repeatable Accuracy: .0012” | |
| Power: 4000 watts | |
| Assist Gases: Nitrogen. Oxygen. | |
| TAYLOR –WHARTON VTM3000 LIQUID NITROGEN TOWER | |
|---|---|
| Application: Fiber Laser Assist Gas | |
| Prevention: When cutting Mild Steel, Nitrogen assist gas eliminates the oxide edge casued by oxygen and the need for a secondary operation to prep for powder coating | |
| Max Material Thickness with Mild Steel: 0.313” | |
| Capacity: 3000 Gallons | |
| Psi: 500 | |

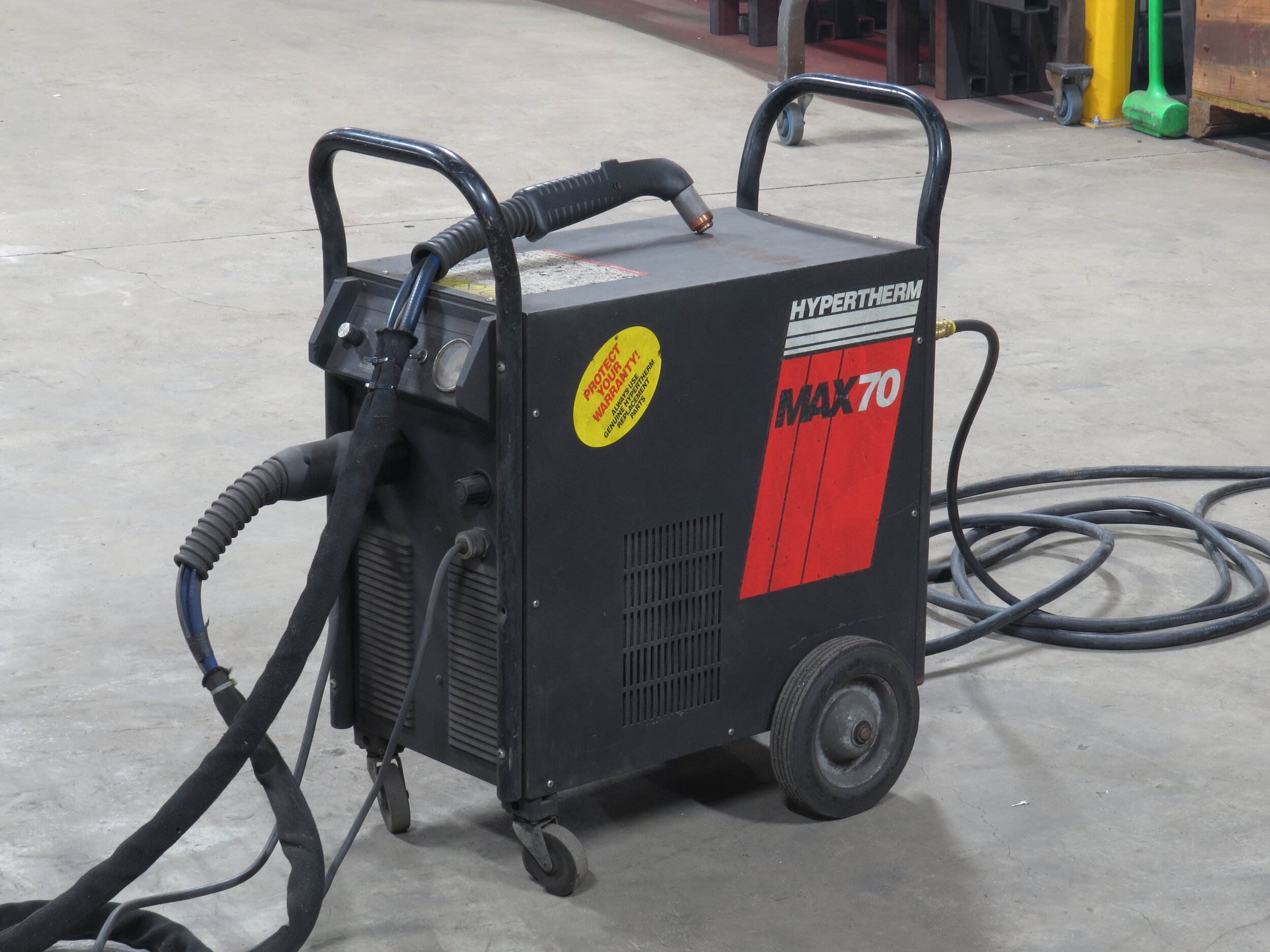

| HYPERTHERM MAX70 PLASMA CUTTER | |
|---|---|
| Max Cutting Range: 0.75” | |
| Gouging Metal Removal Rate (Mild Steel): 6.6 lbs/hr | |
| Max Current at 50% Duty Cycle: 70 amps | |
| Materials: Steel, Stainless Steel, Aluminum, Brass, Copper, Maganese, High Chrome | |
