MACHINING
Machining is not our primary function, but it is a necessity in our fabrication facility. Be rest assured that when your project needs Machining, we’ll have you covered.
VERTICAL MACHINING CENTER: 30 HP / 15,000 RPM,
Table Size: 48” x 20”, Machine Travels: (x/y/z) 40”/20”/17.7”
TAPPING: Tap Capacity: 0 - 9/16”, Reach: 14” - 51”
DRILLING: Cast Iron Capacity: 5/8”, Mild Steel Capacity: 1/2”, Spindle Travel: 4.75”, Distance Between Spindles: 15”
MILLING: Table Size: 11” x 58”
MACHINES
| OKUMA MC-V4020 CNC VERTICAL MACHINING CENTER | |
|---|---|
| Table Size: 48" x 20" | |
| Machine Travels (x/y/z): 40"/20"/17.7" | |
| Horsepower/Speed: 30 HP / 15,000 RPM | |

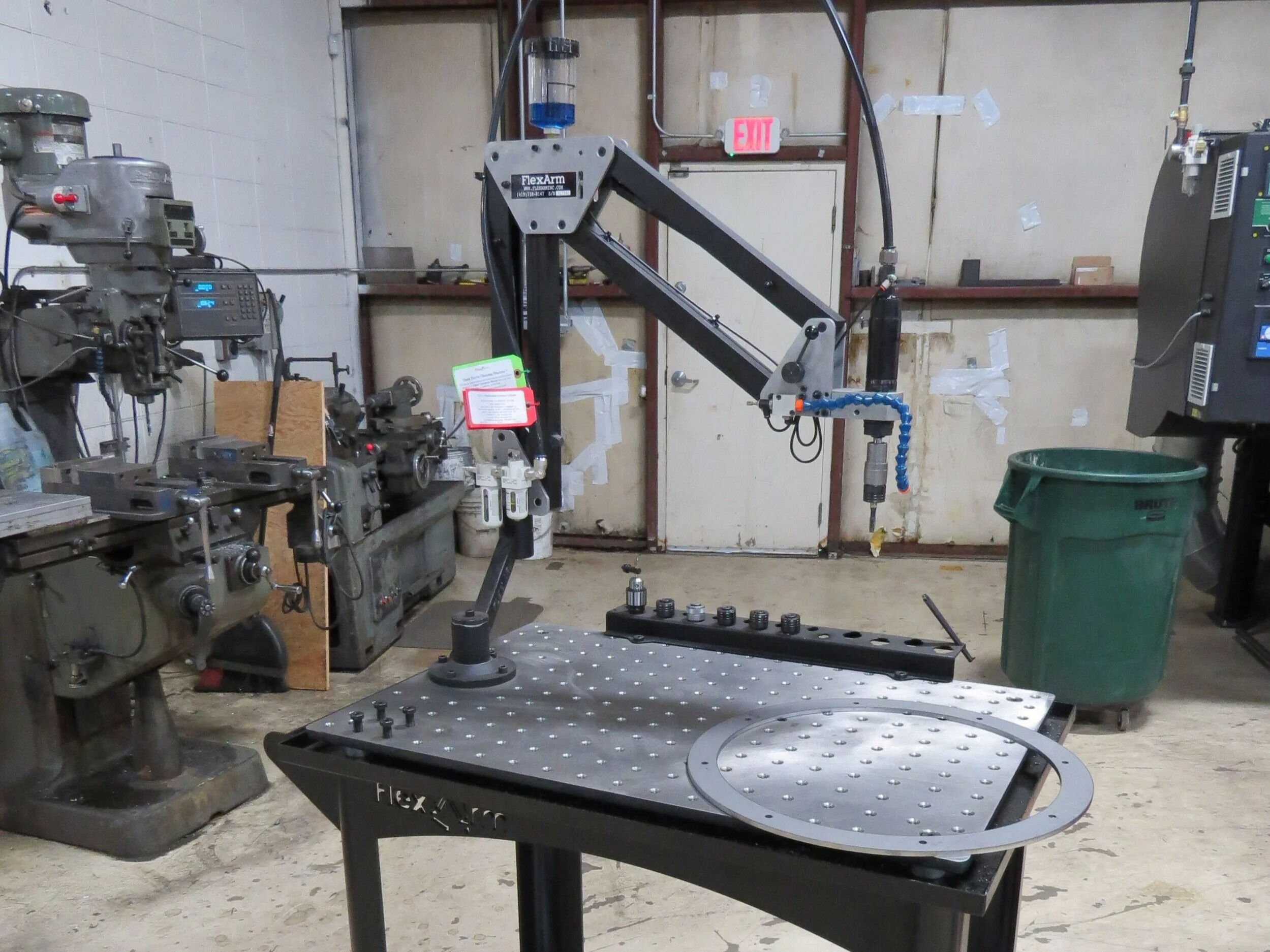

| FLEXARM S-36 TAP TABLE | |
|---|---|
| Tap Capacity: 0 to 9/16" | |
| Reach: 14" to 51" | |
| CLAUSING 15" 4-SPINDLE DRILL PRESS | |
|---|---|
| Cast Iron Capacity: 5/8” | |
| Mild Steel Capacity: 1/2" | |
| Spindle Travel: 4.75" | |
| Distance Between Spindles: 15" | |
| BRIDGEPORT SERIES II W/DIGITAL READOUT | |
|---|---|
| Table Size: 11” x 58" | |
| Milling Capacity: Mild steel - 4 cu. in/min | |
| Drilling Capacity: Mild steel (manual) - 1.25", Mild steel (power feed) - .75" | |
| Boring Range: Mild steel - up to 8" dia. | |
